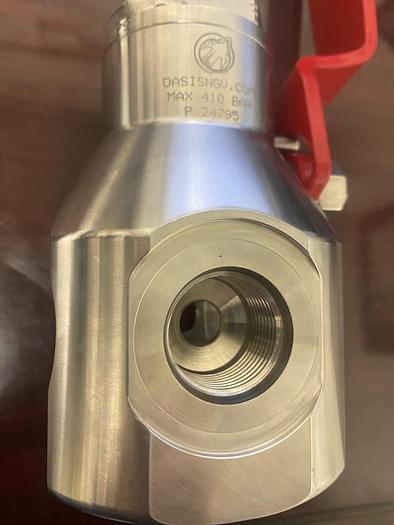

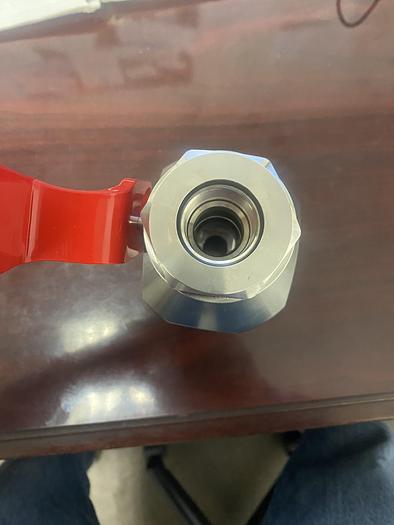

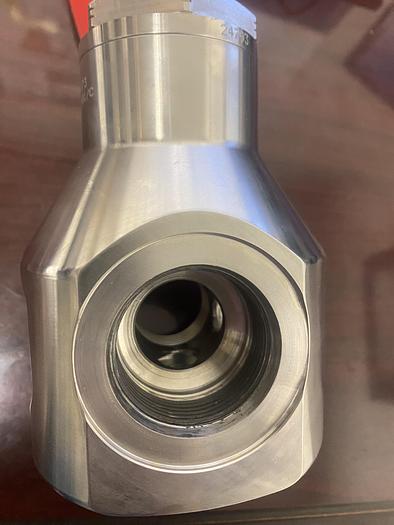

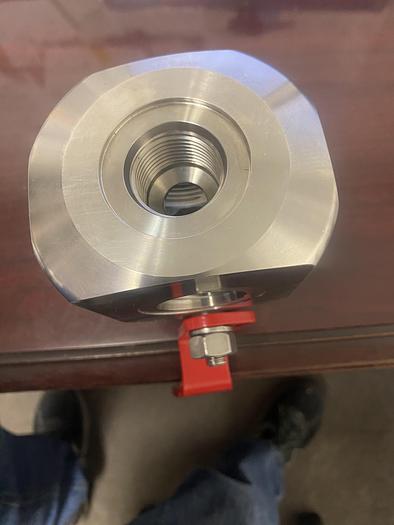

6 port 6000PSI Oasis stainless 1/2" Ball Valve Good for Hydrogen CNG ...

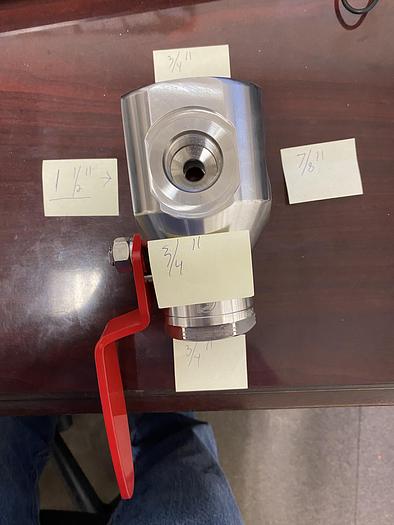

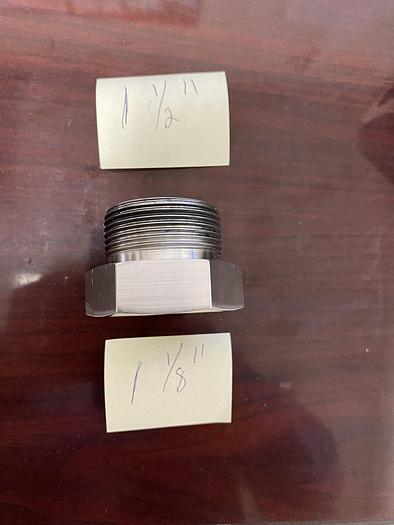

6 Port Valve 3/4"x 3/4" x3/4"x3/4" x7/8" X1 1/2" 6000 PSI1 1/2' to 1 1/8 Stainless bushings are available

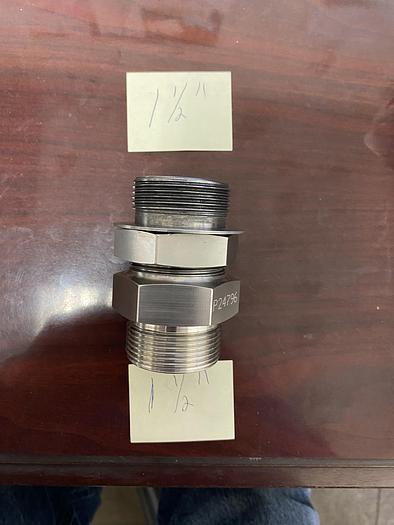

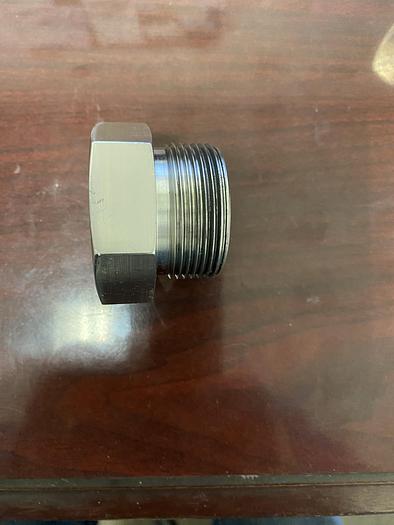

1 1/2" M x 1 1/2" M tank adapters are avaialble

Possible Applications

Bulk gas trailers (cylinders or spheres)

Bulk gas cylinder storage stacks

Gas vehicle cylinder stacks

Fast fill cylinder stacks

Item Part Material

1 Body 304 Stainless steel

2 Cap 304 Stainless steel

3 Stem 316 Stainless steel

4 Backup O-rings Nitrile

5 O-rings Silicone

6 Seats Delrin

7 Ball 316 Stainless Steel

8 Tank Adaptor 304 Stainless Steel

9 Tank Adaptor Nut 316 Stainless Steel

10 Handle 304 Stainless Steel

 Size  Mass lb (Kg)  Min. Operating Pressure psi (bar)* Max. Operating Pressure psi (bar)** Min Temp. °F (°C) Max Temp. °F

 1/2 ”  9.36 (4.25)    7 (0.5)                       6000 (410)-67                 (-55) 248     (120) 18.4 (25)
