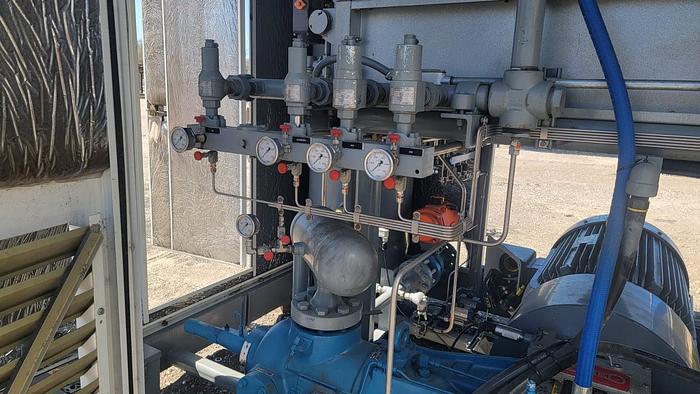

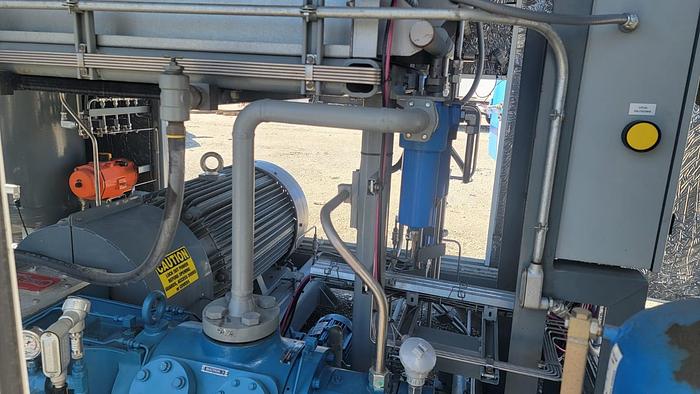

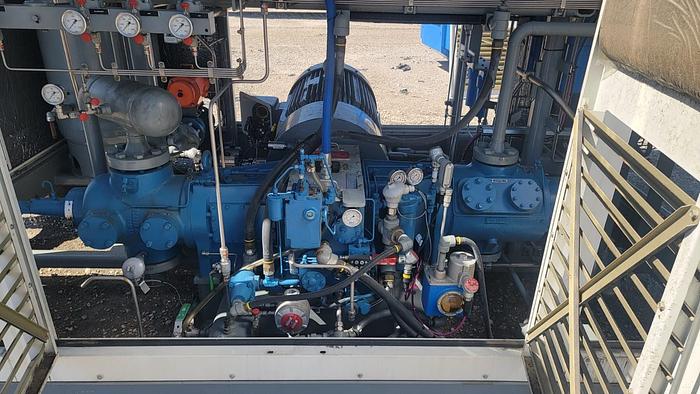

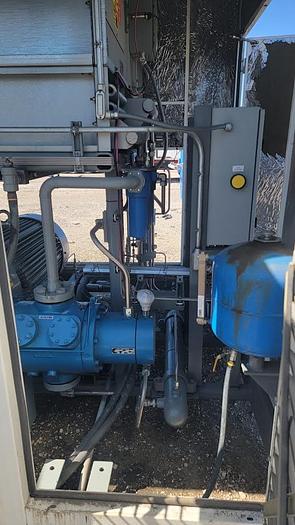

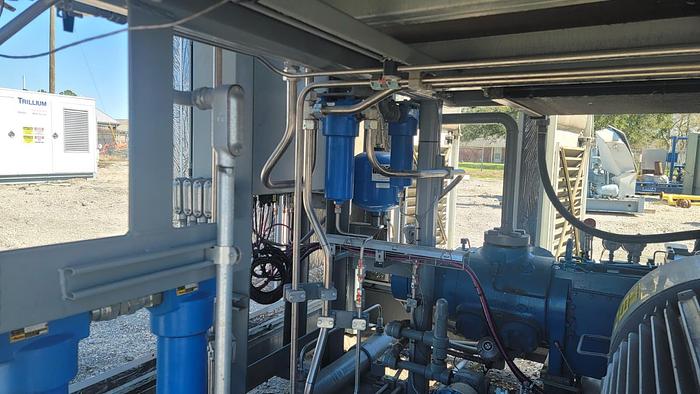

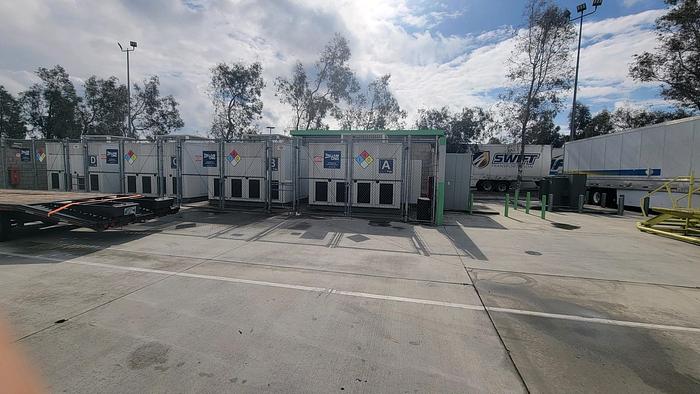

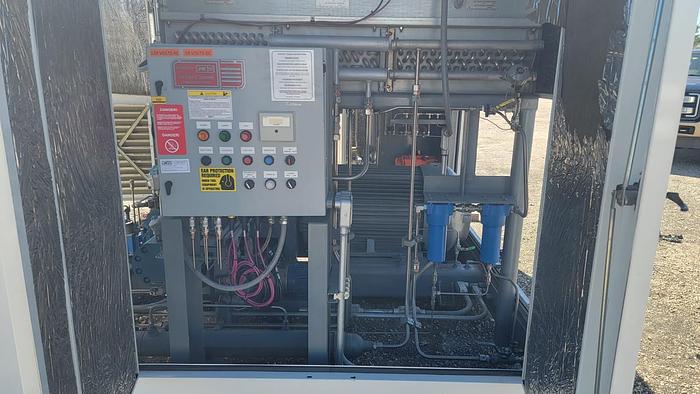

4 Ariel Cng 250 HP compressors 3 Stage, Super low hours Beaumont Texas

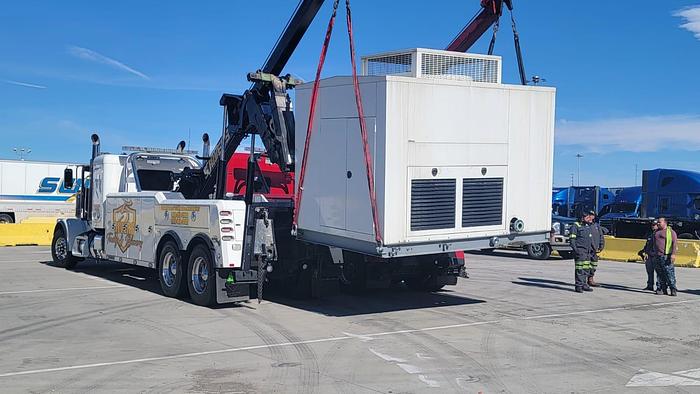

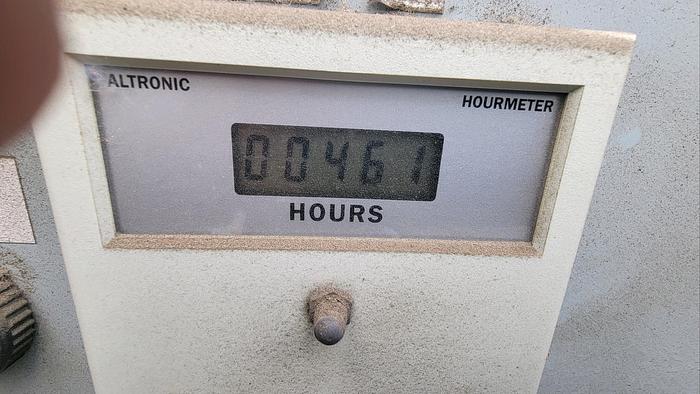

Four Magnificent 3 Stage Ariel 250 HP Compressors capable of 1287 CFM. at 500 LB Suction. The compressors can run from 235 PSI inlet The highest number of hours on any compressor is 461.

PSB Dryer, Intensifier, Krause Dispensers and CP Industries Storage are also available.

These units can go as low as 225 PSI suction pressure.

Specs below

Dimensions 12'8"L x 8'6"Wx10'8"H weighs 14,500 LB

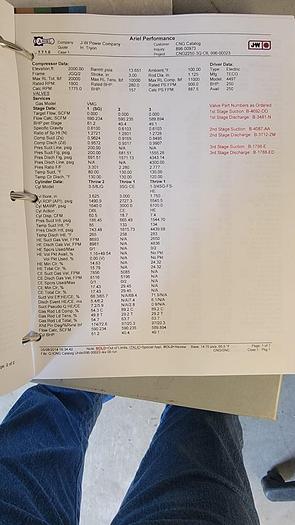

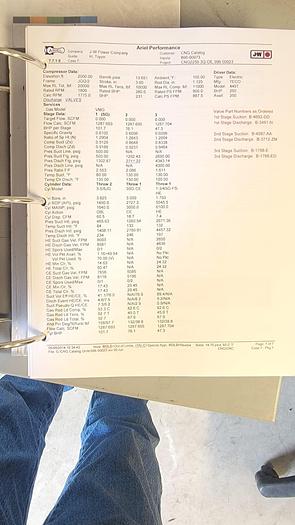

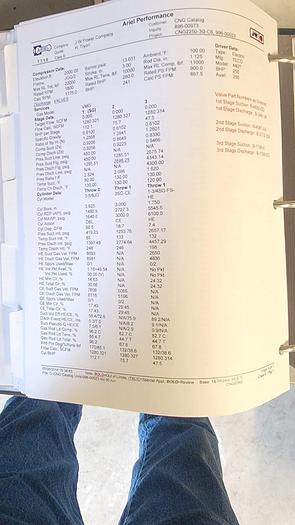

Please checkout the attached multiruns

Compressor Data: Driver Data:

Elevation,ft: 2000.00 Barmtr,psia: 13.651 Ambient,F: 100.00 Type: Electric

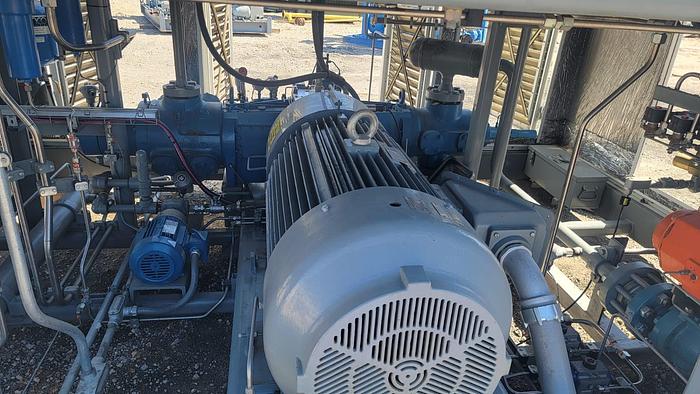

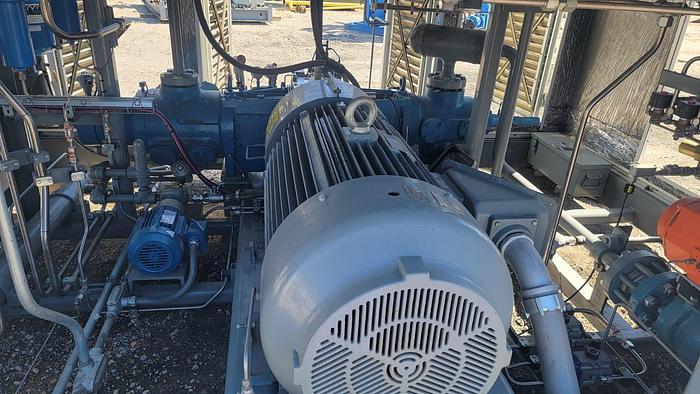

Frame: JGQ/2 Stroke, in: 3.00 Rod Dia, in: 1.125 Mfg: TECO

Max RL Tot, lbf: 20000 Max RL Tens, lbf: 10000 Max RL Comp, lbf: 11000 Model: 449T

Rated RPM: 1800 Rated BHP: 280.0 Rated PS FPM: 900.0 BHP: 250

Calc RPM: 1775.0 BHP: 228 Calc PS FPM: 887.5 Avail: 250

PACKING COOLING

Services

Gas Model VMG-APRNGL2

Stage Data: 1 (SG) 2 3

Target Flow, SCFM 0.000 0.000 0.000

Flow Calc, SCFM 1073.988 1074.000 1073.987

BHP per Stage 106.0 64.6 51.6

Specific Gravity 0.6100 0.6103 0.6103

Ratio of Sp Ht (N) 1.2819 1.2858 1.2662

Comp Suct (Zs) 0.9373 0.8784 0.8314

Comp Disch (Zd) 0.9380 0.9212 0.9593

Pres Suct Line, psig 350.00 N/A N/A

Pres Suct Flg, psig 350.00 1109.81 2329.12

Pres Disch Flg, psig 1119.81 2348.04 4343.14

Pres Disch Line, psig N/A N/A 4300.00

Pres Ratio F/F 3.117 2.102 1.860

Temp Suct, F 80.00 130.00 130.00

Temp Clr Disch, F 130.00 130.00 120.00

Cylinder Data: Throw 2 Throw 1 Throw 1

Cyl Model 3-5/8JG 3SG-CE 1-3/4SG-FSHE

Cyl Bore, in 3.625 3.000 1.750

Cyl RDP (API), psig 1490.9 2727.3 5545.5

Cyl MAWP, psig 1640.0 3000.0 6100.0

Cyl Action DBL CE HE

Cyl Disp, CFM 60.5 18.7 7.4

Pres Suct Intl, psig 320.47 1082.77 2312.92

Temp Suct Intl, F 85 133 132

Pres Disch Intl, psig 1205.07 2416.30 4452.30

Temp Disch Intl, F 264 248 219

HE Suct Gas Vel, FPM 9705 0 2650

HE Disch Gas Vel, FPM 8981 N/A 4836

HE Spcrs Used/Max 0/1 N/A N/A

HE Vol Pkt Avail 1.16+49.54 N/A No Pkt

Vol Pkt Used 0.00 (V) % N/A % No Pkt
