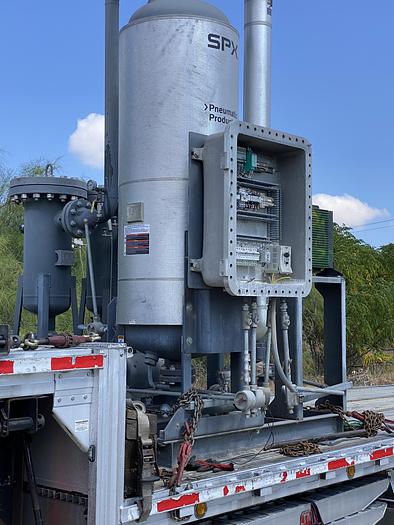

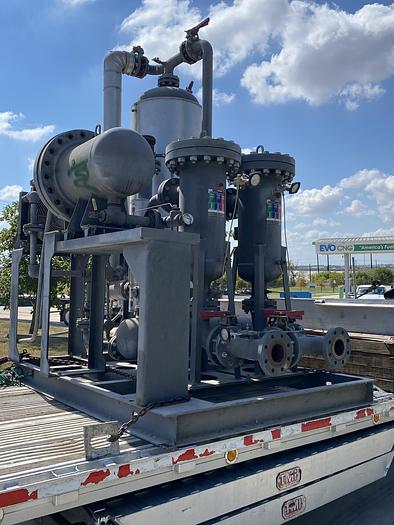

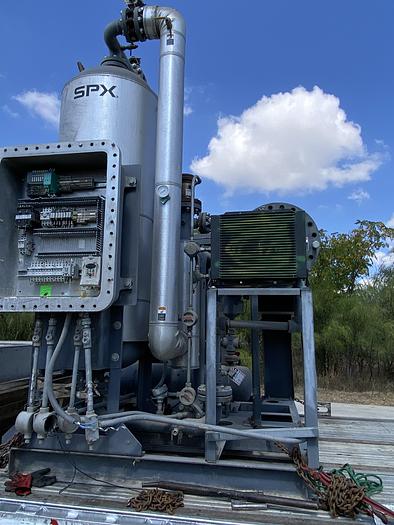

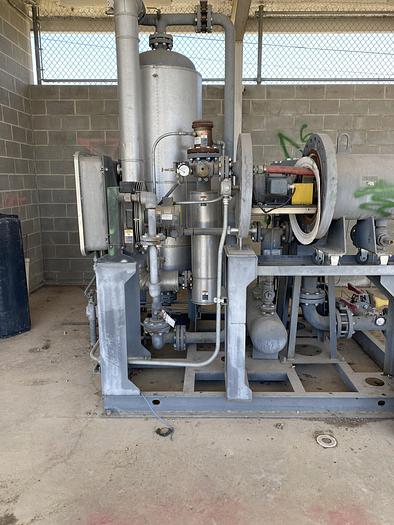

SPX Flow Technology

This unit was in service less than 400 hours

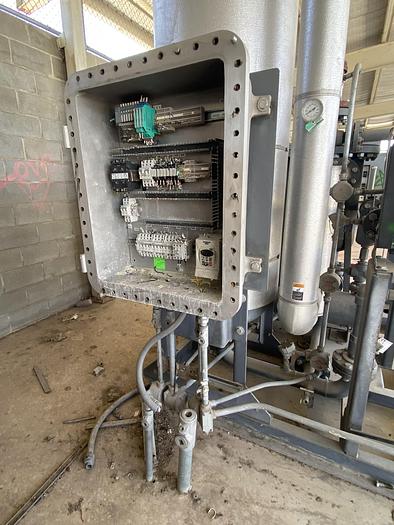

This unit will need a new Controller

STANDARD DESIGN OPERATING CONDITIONS:

INLET FLOW RATE1700

SCFM (REFERRED TO 70°F & 14.7 PSIA)

INLET PRESSURE 300 PSIG

INLET TEMPERATURE 70 °F

INLET MOISTURE CONTENT

7.0LBS/MMSCF

(AT SPECIFIED INLET PRESSURE)

OUTLET MOISTURE CONTENT

-75

°F DEWPOINT AT LINE PRESSURE

DETAIL SPECIFICATIONS:

DRYER DRYING TIME 5000 MINUTES

CYCLE: REGENERATION TIME 480 MINUTES

REGEN PRESSURE 25 PSIG

BLOWER RPM 1600

NOTE:  VFD is Factory Set – Do Not alter RPM setting without contacting Factory

ADSORBENT: DESICCANT TYPE MOL SEIVE

LBS 1/16 (TOP) 174

LBS  1/8 (TOP): 521

DESICCANT SUPPORT: DE-401

LBS (BOTTOM) 87

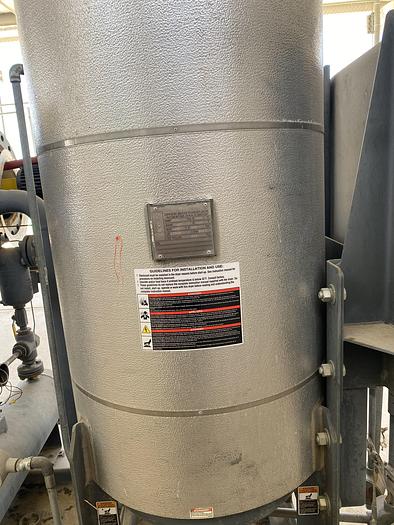

PRESSURE VESSEL:

ASME SECTON VIII DIV 1 STAMPED

DESIGN PRESSURE: 350 PSIG

DESIGN TEMPERATURE

450°F

RELIEF VALVE:

QUANTITY/CHAMBER 1

ASME CODE STAMPED: YES

DRYER: OPERATION MANUAL

PRESSURE DROP: 5 PSIG

CONNECTION SIZE

4” CLS300 RF FLG

REGEN SOURCE: N.G. CLOSE LOOP

(BY BLOWER, 98 scfm)

UTILITIES:

ELECTRICAL:

NEMA TYPE

4, CL1 DIV2 GP C&D

INPUT: 460V/3PH/60HZ

HEATER SIZE: 15 KW

BLOWER MOTOR SIZE: 1.0 HP

COOLER MOTOR SIZE: 0.5 HP

FULL LOAD AMPS

22.0

CONTROL GAS:

PRESSURE

60 PSIG MINIMUM

SOURCE

CUSTOMER SUPPLIED
